Pro-Project Pro-RTG FluoCDRH

Compact and easy to use phantom for performance evaluation of fluoroscopic systems according to Center for Devices and Radiological Health (CDRH) specifications. It also meets recommendations of AAPM Report No. 60 “Instrumentation Requirements of Diagnostic Radiological Physics”. It is optimized for both under- and over-table fluoroscopic tubes.

Technical data (can be modified according to individual specifications):

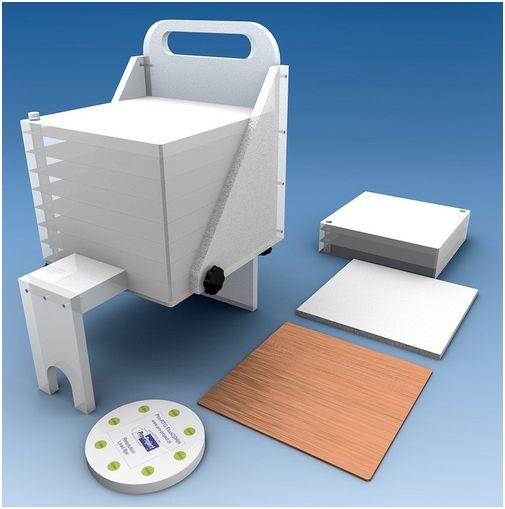

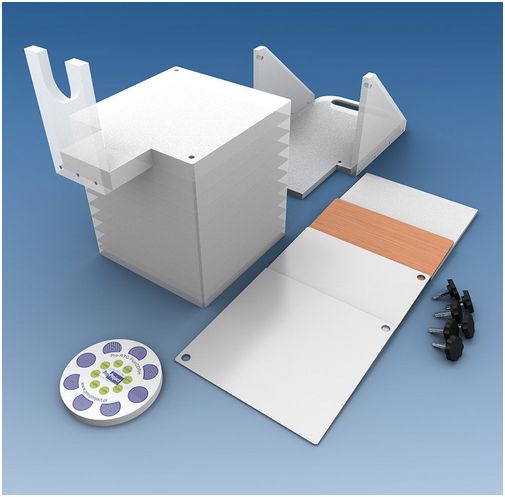

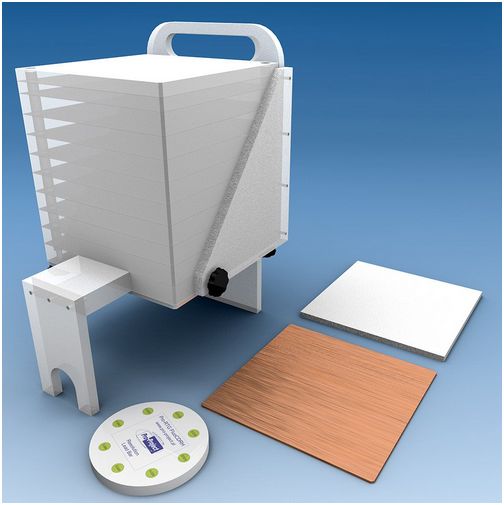

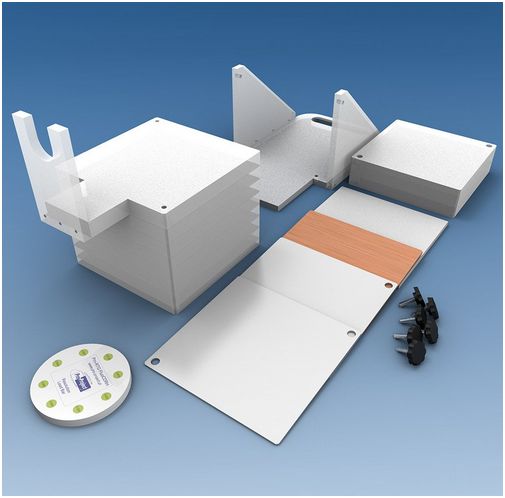

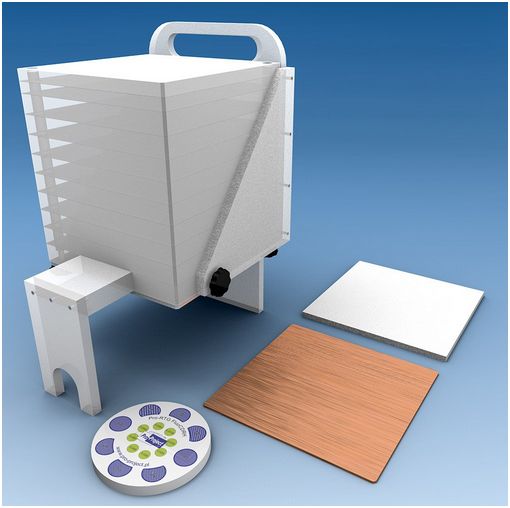

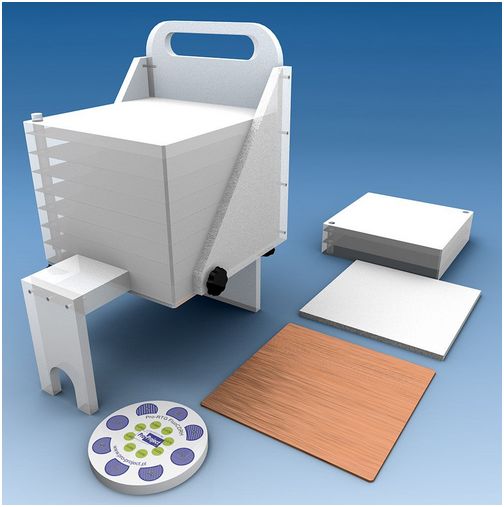

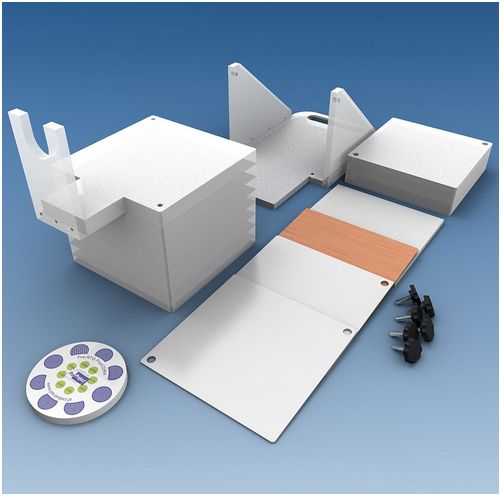

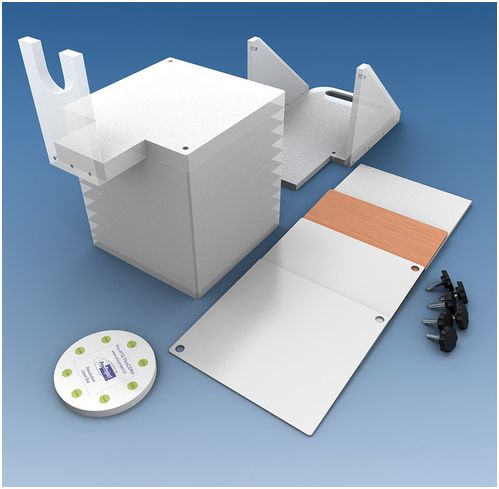

• set of acrylic plates making total thickness of 193mm
• thanks to modular construction different total thicknesses can be easily setup
• size of acrylic plates is 177.8 x 177.8mm
• 2x 2.3mm aluminium filters can be screwed underneath the acrylic plates
• four beads embedded on top plate can be used as orientation points for collimation setup
• phantom stands on two legs 100mm above tabletop
• one leg is a probe holder

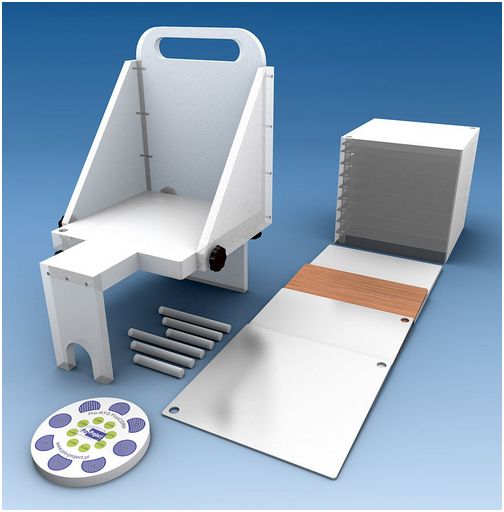

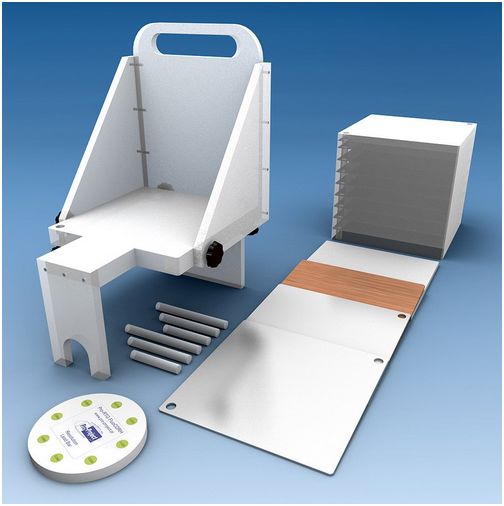

• back plate with handle can be easily unscrewed for over-table measurements
• additional 1.6mm copper filter simulates the presence of a 2 mm thick layer of barium sulfate, and can be used to measure the air kerma rate (free in air)
• 3.2 mm lead plate simulates maximum attenuation, and can be used to measure the maximum air kerma rate (free in air)

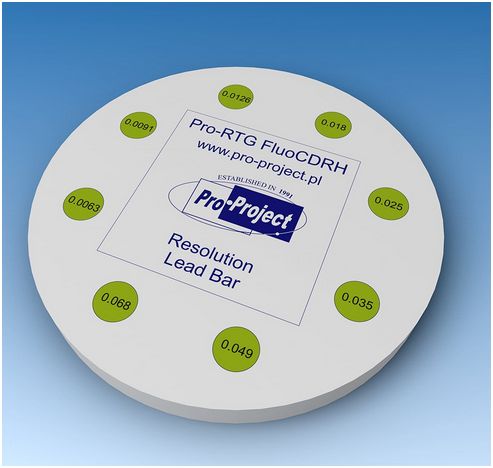

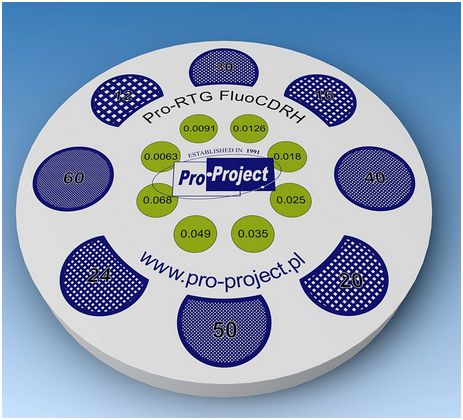

• two types of fluoroscopic image quality test object containing 8 low-contrast holes in aluminium disc and 8 high contrast meshes or high contrast resolution lead plate (from 0.6 to 5.0 LP/mm)
• heavy duty carrying case

Product features:

• Complies with:
  • Nationwide Evaluation of X-ray Trends (NEXT) Protocol for 2003 Survey of Fluoroscopic X-Ray Systems
  • IEC 61223-3-1
  • AAPM Report No. 60 “Instrumentation Requirements of Diagnostic Radiological Physics”
• CE certified
• manual provides detailed guidelines for carrying out each test, results assessment and registration
